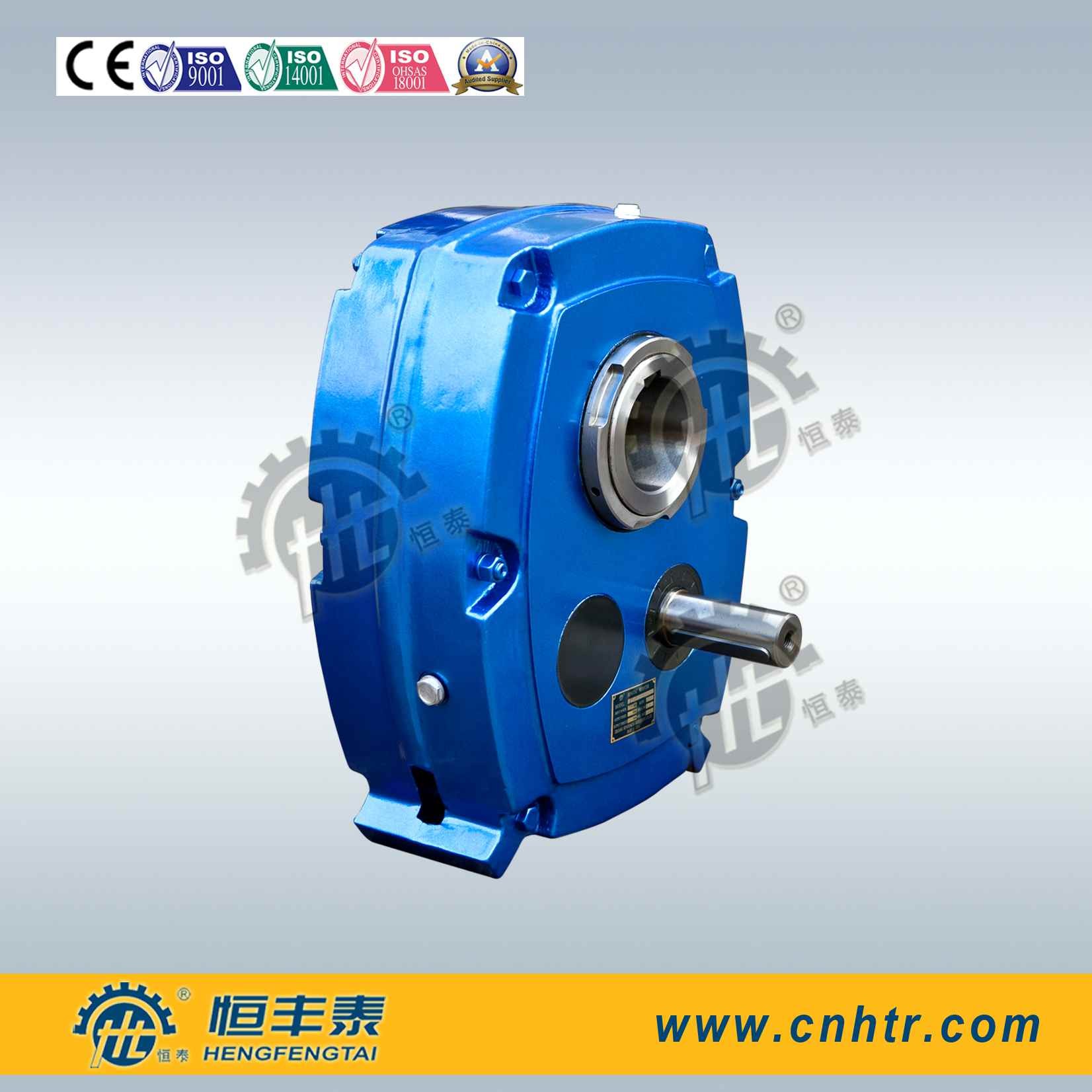

Conveyor Belt Electric Motor Gearbox , Motor Reduction Gearbox
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | Electric Gear Motors,Reduction Gear Boxes |
||
|---|---|---|---|
Product Description
Conveyor Belt Electric Motor Gearbox , Motor Reduction Gearbox
Descriptions:
Helical shaft mounted gear with Taper-Grip bushing
Quick details
| Torque: | 256 to 44.000 Nm |
| Ratios: | 5:1, 13:1, 20:1, 25:1 |
| Power: | 0.18 kW to 280 kW |
| Sizes: | 103 to 608 |
| Bore sizes: | 30 to 190 mm, optionally in inches |
| Mounting: | Vertical, Horizontal, and Direct drive mounting configurations |
| Lubrication: | Oil lubrication, synthetic lubricant optional |
| Housing: | Grey cast iron |
Specifications:
|
Dimension(mm) |
HXGF Size |
|||||||
|
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
|
|
Standard size of shaft |
30 |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
|
Alternative size of shaft |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
120 |
|
Input shaft keyway |
6x3.5x50 |
6x3.5x59 |
8x4x63 |
8x4x70 |
10x5x70 |
12x5x90 |
14x5.5x100 |
16x6x100 |
Permitted Torque:
| Model(single/double) | HXGF30 | HXGF40 | HXGF50 | HXGF55 | HXGF65 | HXGF75 | HXGF85 | HXGF100 | ||||||||
| Nm(100rpm) | 256 | 277 | 401 | 468 | 632 | 783 | 983 | 1194 | 1444 | 1881 | 2407 | 2970 | 3457 | 4380 | 5940 |
7449 |
The way of mounting:
