Crusher Electric Motor Gearbox K87 Electric Motor Connected
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HK series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | Reduction Gear Boxes,planetary geared motors |
||
|---|---|---|---|
Product Description

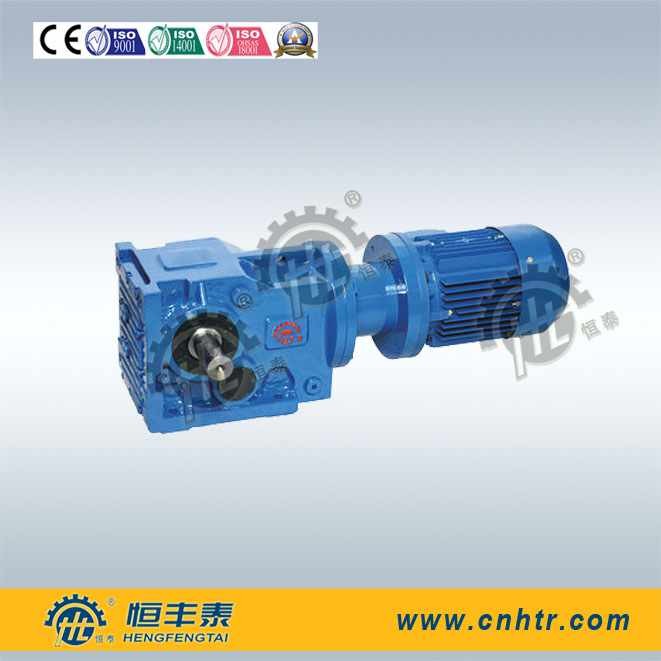

Crusher Electric Motor Gearbox K87 Electric Motor Connected
Quick Details
Rated Power: 0.12~ 200KW
Ratio: 4.09~ 195.2
Output Torque: 170~ 42500N.m
Gearing Arrangement: bevel gear
Input and output Speed: according related parameter list
Place of Origin: Zhejiang, China( Mainland)
Model Number: HK series
Brand Name: HENGTAI
Color: According to customer
Mounting position: foot- mounted and flange-mounted
Material for box: Cast Iron
Packing: Standard Fumigation Wooden
Descriptions:
Our K series bevel gear reducer of right angle gearmotors do not have any thermal restrictions because of optimum lubrication
compact and space-saving design low friction.
The K series bevel gear reducer of right angle gearmotors is the first product to prove equally good in
regard to efficiency and versatility within a highly competitive context, both performance and price-wise.
We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that
the K series of right angle gearmotors do not reveal any noticeable wear.
Specification:
|
model |
37 |
47 |
57 |
67 |
77 |
87 |
|
Structure |
K,KA,KF,KAF,KAZ,KAT,KAB |
|||||
|
Input Power KW |
0.12~3 |
0.12~3 |
0.12~4 |
0.18~5.5 |
0.37~11 |
0.75~22 |
|
Transmission Ratio i |
4.09~106.6 |
4.66~131.7 |
4.68~143.5 |
7.1~646.2 |
7.11~192.7 |
7.42~195.2 |
|
Allowed Torque Nm |
170 |
340 |
510 |
705 |
1320 |
2300 |
|
Weight kgs |
12 |
22 |
30 |
37 |
63 |
94 |
|
model |
97 |
107 |
127 |
157 |
167 |
187 |
|
Structure |
K,KA,KF,KAF,KAZ,KAT,KAB |
|||||
|
Input Power KW |
1.1~30 |
3~45 |
7.5~90 |
11~160 |
15~200 |
15~200 |
|
Transmission Ratio i |
8.88~176.5 |
8.72~147.2 |
8.6~144.4 |
12.7~151.1 |
17.3~161 |
17.1~180.7 |
|
Allowed Torque Nm |
3670 |
6800 |
11050 |
15300 |
27200 |
42500 |
|
Weight kgs |
145 |
275 |
420 |
680 |
1130 |
1870 |
Note:
KA: hollow shaft output
KF: flange-mounted solid shaft output
KAF: flange-mounted hollow shaft output
KAZ: short-flange-mounted hollow shaft output
KAT: torque-arm-mounted hollow shaft output
KAB: foot-mounted hollow shaft output
Your benefits:
1. High power density
2. Long service life
3. Multi-stage gear unit for low output speeds
4. Two-stage or three-stage versions
5. Same reducer as SEW K series
Applications:
Material handling
Conveyor belts
Ball mills
Wire drawing machines
Food industry
Agitators
Printing presses
Belt filter presses
Shredders/compacters
Chip conveyors
