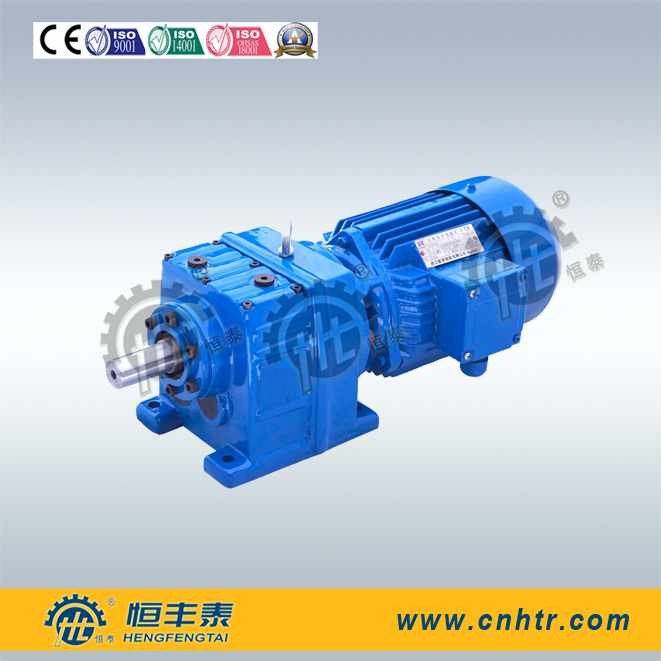

Mining Electric Motor Gearbox Torque 15300 Nm For Roller Shaft

  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HR series
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

Reduction Gear Boxes

,

planetary geared motors
Leave a Message
Product Description

Mining Electric Motor Gearbox Torque 15300 Nm For Roller Shaft





Quick Details



·         Gearing Arrangement:



·         Output Torque:110~15300N.m



·         Rated Power: 0.12~160KW



·         Input and output Speed: according related parameter list



·         Place of Origin: Zhejiang, China (Mainland)



·         Model Number: HR series Mixer agitator reducer



·         Brand Name: HENGTAI



·         Color: According to customer



·         Ratio: 3.37~224.6



·         Mounting position: Horizontal foot-mounted, Vertical flange-mounted



·         Material for box: Cast Iron



·         Packing: Standard Fumigation Wooden





Descriptions:



R series Helical Gear Reducer can be single-stage or multi-stage with both mounting ways foot-mounted



and flange-mounted. For high output speeds, the exclusively single-stage gear units HR27-HRX167 offer



compact solutions for your system design. As for the two-stage and three-stage, our complete range of



helical gearmotors provides the optimum size and power solution for every drive task.







Specification:



The input powerpermissible torque and weight list of HR reducer:



Model

27

37

47

57

67

77

Structure form

HRHR..FHRF

Input power

0.12-3

0.12-3

0.12-5.5

0.12-7.5

0.12-7.5

0.18-11

Ratio

3.37-136

3.4-133.3

3.87-182.6

4.32-183.2

4.32-180.7

5.28-200.9

Permissible torque

110

170

255

380

510

700

weight

6.2

9.4

11

20

28

40

Model

87

97

107

137

147

167

Structure form

HRHR..FHRF

Input power

0.55-22

0.55-37

2.2-55

5.5-75

11-110

11-160

Ratio

5.33-245.7

4.52-280.6

4.98-255.4

5.22-223.2

4.93-162.1

10.43-224.6

Permissible torque

1320

2550

3670

6800

11050

15300

weight

70

112

169

245

440

770



Applications:



1.   Conveyor machinery



2.   Craning



3.   Bagger



4.   Enginery for foot industry



5.   Washer



6.   working machine



7.   Cropping & shearing machine



8.   woodworking machine



9.   Machines for plastic industry
